Eemian excuses: the warm was different then, polar bears were fine

Today I’ll discuss the response by Polar Bears International representative Steven Amstrup to a comment submitted during their recent “webchat” at The Guardian (Wednesday, November 6), which had to do with the fact that polar bears survived warm periods in the geological past, particularly interglacials.

[Here’s a pdf file of all the questions that were answered by PBI staff: PBI webchat Q&A, also available here]

This is the comment (the first portion of #4 on my list), submitted by MarkBLR:

There was a paper in Science magazine last year (link …) indicating that polar bears became a distinct species about 600kya (+/- 300k years).

This means that they have survived at least two (and possibly eight) previous inter-glacials, in particular the Eemian (130kya to 110kya), when temperatures in the Arctic were 5 to 8 degrees Celcius warmer than current temperatures for several thousand years.

Note that their numbers apparently decreased significantly during the Eemian, and slowly increased as temperatures cooled, but “climate change” was not enough on its own to make them extinct. [my bold]

[We can perhaps forgive Mark for not being able to spell “Celsius” correctly, but Amstrup (see below) has no excuse. The paper in Science Mark refers to is Hailer et al. 2012, discussed in a previous post here. Note that the actual question Mark asked is not included here because Amstrup responded to this portion of his comment only]

Amstrup tries to convince Mark and other readers that polar bear resilience through Eemian warming is irrelevant to the issue of future survival, which I’ll demonstrate is not the case at all.

Here is what Amstrup had to say:

Polar bears have indeed survived at least the last interglacial and probably the previous (between the Holstenian and Wisconsin). However, the warmest annual mean temperature during either of those was about 1 degree celcius warmer than today. Summer temperatures in portions of the Arctic were up to 5-8 degrees warmer, but it is the annual average that is really telling.

All available evidence suggests that ample sea ice to support large numbers of bears persisted in both interglacials just as it did in the less warm interglacial between the Wisconsisn glaciation and the Holocene (the interglacial we are in right now).

The difference is that those warmer periods were part of the natural cycle of how much solar energy reaches earth during different stages of our orbit around the sun. The current warming is not a cycle and can only be stopped if we take action. [my bold]

Mark and Amstrup agree then, that during the Eemian (aka Marine Isotope Stage (MIS) 5e and the Sangamonian, which lasted from 130,000 to 115,000 years ago and peaked at ~125,000), summer temperatures were 5-8 degrees C warmer in parts of the Arctic and the annual global mean temperature was about 1 degree warmer. Note that the oldest known polar bear fossil dates to this period, from Svalbard (Lindqvist et al. 2010).

Amstrup says it’s the annual global mean temperature that counts, not the summer highs. Let’s not quibble with that for the moment: let’s say the important feature of the Eemian was that it was, on average, about 1 degree Celsius warmer than today.

However, the essential issue for polar bears wasn’t the average global temperature but rather, what sea ice conditions were like during the Eemian.

Amstrup seems to agree because he contends that “all available evidence suggests ample sea ice to support large numbers of bears” existed during the Eemian. He must be talking about winter ice coverage here because all evidence suggests that during the Eemian summer, the Arctic was ice was virtually ice-free (see below) or very nearly so.

This strikes me as an oddly contradictory admission from someone who constantly insists that summer ice is critical for polar bear survival but never mind.

Let’s take a look at what we know about Eemian ice coverage:

Winter – at the lowest point, there was no ice in the Bering Sea south of Bering Strait (Polyak et al. 2010:1769). There seems to be no sea ice proxy data (so far) from the eastern Arctic, but the fact that a polar bear jaw bone (mandible) was recovered on Svalbard indicates that sea ice must have reached there at some point (the fossil could not be dated precisely enough to narrow this down, see previous post here).

There is no data from Hudson Bay itself but we know the tree line extended well north of its present position near Churchill. In fact, boreal forests extended to Tuktoyaktuk on the Southern Beaufort coast and the southern Arctic Islands, much further north than during the Holocene Optimum (Featured Quote #10; CAPE 2006; Dredge 1990; Nichols 1967). Sea levels were up to 6 m higher (Cutler et al. 2003: Table 2).

If the Bering Sea had no ice at the height of the Eemian, southern and western Hudson Bay likely had ice cover for a much shorter period than today – perhaps only January to May vs. the current November to July coverage (see post on Hudson Bay geology). I suggest it is doubtful that polar bear females made maternity dens on the shores of southern and western Hudson Bay as they do today but they may have hunted in the southern bay in the spring when ice was at its maximum extent. Foxe Basin (see Fig. 1) may have been the furthest south females could reliably den in Hudson Bay during the Eemian, but that’s a guess.

Summer – at the lowest point, essentially “ice-free” conditions existed during the Eemian (Polyak et al. 2010), which means all but a thick band of multi-year ice north of the Queen Elizabeth Islands, Ellesmere Island and Northwest Greenland persisted (even in modern parlance, “ice-free” means a decline to less than 1 million square km”). While a recent study by Bauch et al 2012 (press release and pdf here) vaguely argues against ice-free summer conditions, the study contradicts evidence from a number of other Arctic locations. It’s a moot point for this discussion, however, because as Amstrup insists, winter ice coverage was the significant value for polar bears.

The bottom line is this: it was much warmer in the Eemian than it is now – much warmer even than the Holocene Optimum – and that minor-sounding “1 degree C” difference resulted in significantly less winter ice and even less summer ice than we have today.

I will not dispute that during the Eemian there was almost certainly enough ice present in winter to support a viable population of polar bears, perhaps even a fairly large one – we would not have polar bears today if that had not been the case – but Amstrup misleads the public by implying that Eemian sea ice changes did not represent a significant departure from modern polar bear habitat (see Fig. 1) and that polar bear populations were not appreciably smaller than today.

Figure 1. Projected losses in abundance in current polar bear subpopulation regions at the height of the Eemian interglacial, ca. 130,000-115,000 years ago, due to declines in winter ice coverage. There was no ice in the Bering Sea in winter in the Eemian (Polyak et al. 2010), almost certainly causing a dramatic drop of polar bear numbers in the “Chukchi Sea” subpopulation. Due to warmer temperatures in the Canadian Arctic (forests to the Arctic coast), there was almost certainly a markedly shorter sea ice season in Southern and Western Hudson Bay, and in Davis Strait, resulting in marked local declines in polar bear numbers there as well. Populations elsewhere may have declined (due to somewhat shortened ice seasons) or increased due to immigration from other regions.

Figure 1. Estimated relative losses in abundance in current polar bear subpopulation regions at the height of the Eemian interglacial, ca. 130,000-115,000 years ago, due to declines in winter ice coverage. There was no ice in the Bering Sea in winter in the Eemian (Polyak et al. 2010), almost certainly causing a dramatic drop of polar bear numbers in the Chukchi Sea subpopulation. There was almost certainly a markedly shorter sea ice season in Southern and Western Hudson Bay, and in Davis Strait, resulting in marked local declines in polar bear numbers. Populations elsewhere may have declined (due to somewhat shortened ice seasons) or increased due to immigration from other regions but overall, the population was still remarkably large.

Amstrup does not define what he means by a “large” population but my guess is that this comment is based on the work of a single group of geneticists, Miller et al. 2012 (PNAS), who made a guess about changes to effective population size(i.e., not the total size) of polar bears during the Late Pleistocene.

This effective population size estimate was generated with a computer model, based on very limited genetic data, but it’s the only evidence we have regarding past population sizes. Considering how many other dubious assertions Miller and colleagues made in their analysis (discussed previously here), I don’t have a great deal of confidence in the actual figures they use in their graph, but the relative differences (gross changes) are probably valid. Their models put early Eemian polar bear effective population size below current levels but well above early-mid 20th century values.

That suggests that a one degree Celsius rise in global average temperature (associated with a significant contraction of winter sea ice) had less of an impact on polar bear numbers than the pre-1970s slaughter of bears.

If correct, it means that the Eemian polar bear population was considerably smaller than today. This is evidence that was not available in 2008 when polar bears were listed as “threatened” with extinction based on predictions of future sea ice loss (US Fish & Wildlife 2008).

In other words, polar bears survived the Eemian with a population that had to have been many thousands of bears smaller than today but they were nowhere near extinction. Amstrup says as much and I agree.

However, Amstrup rails constantly at summer breakup of western and southern Hudson Bay sea ice a few weeks earlier than the 30 year average but here he dismisses as inconsequential the total loss of Bering Sea winter ice during the Eemian. Go figure.

Amstrup says “the current warming is not a cycle…” The Eemian warming had a different cause, he says, than what’s happening today.  I say, for polar bears, it doesn’t matter. The amount of ice loss is what matters to polar bears.

[For those who argue that we’re losing ice faster now than during the transition into the Eemian, I say there is not nearly enough data on sea ice changes to make that claim — we simply do not know]

I think it’s important to understand why Amsturp and his colleagues are so dismissive about polar bear survival through the Eemian and to do this, I have to discuss their models — but I’ll keep it short and simple.

What you need to know is that the future polar bear survival models generated by Amstrup and his colleagues (e.g., Amstrup et al. 2008, 2011; Durner et al. 2009; Obbard et al. 2010) predicted that a 1 degree increase in global temperature would have a much less profound effect on sea ice habitat than the Eemian actually experienced.

Something approaching the Eemian sea ice situation (approximated in Fig. 1), with no ice in the Bering Sea in winter, occurs in only a few of the model runs (Fig. 2). Those ice-free [winter] Bering Sea projections do not appear until the end of the 21st century and assume that global temperatures would have increased by almost 3 degrees Celsius by that time (Durner et al. 2009:Fig.8c, using IPCC AR4 (2007) scenario A1B, “business as usual” 1.7-4.4 degree increase, average 2.8).

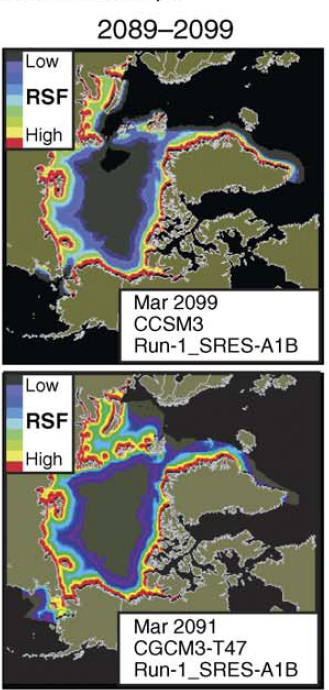

Fig. 2 Excerpt of winter ice projections from Durner et al. 2009 (Figure 8c), showing an ice-free Bering Sea in 2099 and a more typical projection for that decade below (for 2091, showing ice south of the Bering Strait).

Fig. 2 Excerpt of winter ice projections from Durner et al. 2009 (Figure 8c), showing an ice-free Bering Sea in 2099 (top panel) and a more typical projection for that decade below (for 2091, showing ice south of the Bering Strait). They modeled only Arctic basin populations and sea ice.

However, the temperatures are a side issue here – it’s the ice levels that matter.

What we have from the Eemian is irrefutable evidence that polar bears are capable of surviving a significant contraction of winter sea ice habitat without getting anywhere close to extinction. In fact, the only evidence we have (from genetics) suggests the population did not drop as low as it did during historic times.

Here’s the problem: the polar bear survival models concocted by Amstrup and colleagues predict near-extinction of the polar bear under Eemian-like conditions. Amstrup needs to discount the Eemian evidence of polar bear resilience to fairly profound sea ice changes because it’s concrete proof that these models, which predict the loss of two-thirds of the world’s polar bears by the middle of this century, are worthless.

References
Amstrup, S.C. 2011. Polar bears and climate change: certainties, uncertainties, and hope in a warming world. Pgs. 11-20 in R.T. Watson, T.J. Cade, M. Fuller, G. Hunt, and E. Potapov (eds.), Gyrfalcons and Ptarmigan in a Changing World, Volume 1. The Peregrine Fund, Boise, Idaho. http://dx.doi.org/10.4080/gpcw.2011.0100

Amstrup, S.C., DeWeaver, E.T., Douglas, D.C., Marcot, B.G., Durner, G.M., Bitz, C.M., and Bailey, D.A. 2010. Greenhouse gas mitigation can reduce sea-ice loss and increase polar bear persistence. Nature 468:955-958. http://www.nature.com/nature/journal/v468/n7326/abs/nature09653.html

Amstrup, S.C., Marcot, B.G., Douglas, D.C. 2008. A Bayesian network modeling approach to forecasting the 21st century worldwide status of polar bears. Pgs. 213-268 in Arctic Sea Ice Decline: Observations, Projections, Mechanisms, and Implications, E.T. DeWeaver, C.M. Bitz, and L.B. Tremblay (eds.). Geophysical Monograph 180. American Geophysical Union, Washington, D.C. http://onlinelibrary.wiley.com/doi/10.1029/180GM14/summary and http://alaska.usgs.gov/science/biology/polar_bears/pubs.html

CAPE Last Interglacial Project Members, 2006. Last interglacial Arctic warmth confirms polar amplification of climate change. Quaternary Science Reviews 25:1383-1400. http://www.sciencedirect.com/science/article/pii/S0277379106000990
Cutler, K.B., Edwards, R.L., Taylor, F.W., Cheng, H., Adkins, J., Gallup, C.D., Cutler, P.M., Burr, G.S., and Bloom, A.L. 2003. Rapid sea-level fall and deep-ocean temperature change since the last interglacial period. Earth and Planetary Science Letters 206:253-271. http://www.sciencedirect.com/science/article/pii/S0012821X0201107X

Dredge, L.A. 1992. Field Guide to the Churchill region, Manitoba: Glaciations, sea level changes, permafrost landforms, and archaeology of the Churchill and Gillam areas. Geological Survey of Canada Miscellaneous Report 53.

Durner, G.M., Douglas, D.C., Nielson, R.M., Amstrup, S.C., McDonald, T.L. and 12 others. 2009. Predicting 21st-century polar bear habitat distribution from global climate models. Ecological Monographs 79:25-58. http://www.esajournals.org/doi/abs/10.1890/07-2089.1

Hailer, F., Kutschera, V.E., Hallstrom, B.M., Klassert, D., Fain, S.R., Leonard, J.A., Arnason, U., and Janke, A. 2012. Nuclear genomic sequences reveal that polar bears are an old and distinct bear lineage. Science 336:344-347. http://www.sciencemag.org/content/336/6079/344

Lindqvist, C., Schuster, S.C., Sun, Y., Talbot, S.L., Qi, J., Ratan, A., Tomsho, L., Kasson, L., Zeyl, E., Aars, J., Miller, W., Ingólfsson, Ó., Bachmann, L. and Wiig, Ø. 2010. Complete mitochondrial genome of a Pleistocene jawbone unveils the origin of polar bear. Proceedings of the National Academy of Sciences USA 107:5053-5057.

Miller, W., Schuster, S.C., Welch, A.J., Ratan, A., Bedoya-Reina, O.C., Zhao, F., Kim, H.L., Burhans, R.C., Drautz, D.I., Wittekindt, N. E., Tomsho, L. P., Ibarra-Laclette, E., Herrera-Estrella, L., Peacock, E., Farley, S., Sage, G.K., Rode, K., Obbard, M., Montiel, R., Bachmann, L., Ingolfsson, O., Aars, J., Mailund, T., Wiig, O., Talbot, S.L., and Lindqvist, C. 2012. (in press). Polar and brown bear genomes reveal ancient admixture and demographic footprints of past climate change. Proceedings of the National Academy of Sciences
open access: http://www.pnas.org/content/early/2012/07/20/1210506109.full.pdf+html

Nichols, H. 1967. Central Canadian palynology and its relevance to Northwestern Europe in the late Quaternary period. Review of Paleobotany and Palynology 2:231-243.
http://www.sciencedirect.com/science/article/pii/0034666767901510

Polyak, L., Alley, R.B., Andrews, J.T., Brigham-Grette, J., Cronin, T.M., Darby, D.A., Dyke, A.S., Fitzpatrick, J.J., Funder, S., Holland, M., Jennings, A.E., Miller, G.H., O’Regan, M., Savelle, J., Serreze, M., St. John, K., White, J.W.C. and Wolff, E. 2010. History of sea ice in the Arctic. Quaternary Science Reviews 29:1757-1778. http://bprc.osu.edu/geo/publications/polyak_etal_seaice_QSR_10.pdf

Obbard, M.E., Theimann, G.W., Peacock, E. and DeBryn, T.D. (eds.) 2010. Polar Bears: Proceedings of the 15th meeting of the Polar Bear Specialist Group IUCN/SSC, 29 June-3 July, 2009, Copenhagen, Denmark. Gland, Switzerland and Cambridge UK, IUCN.

US Fish & Wildlife 2008. Determination of threatened status for the polar bear (Ursus maritimus) throughout its range. Federal Register 72 (95):28212-28303.
