Svalbard at end of April again has 6th-7th highest sea ice extent & a lot of very thick ice

For the second time this month, sea ice around Svalbard Norway was the 6th or 7th highest since records began in the late 1960s. Pack ice at the end of April still surrounds Bear Island (Bjørnøya) at the southern end of the archipelago, which is a rare occurrence at this date. These conditions document a recurrent pattern of high ice extent and especially extreme ice thickness in the Barents Sea since last summer.

Bear island 8 March 2019_first bear seen since 2011_Bjørnøya Meteorological Station photo SVALBARDPOSTEN

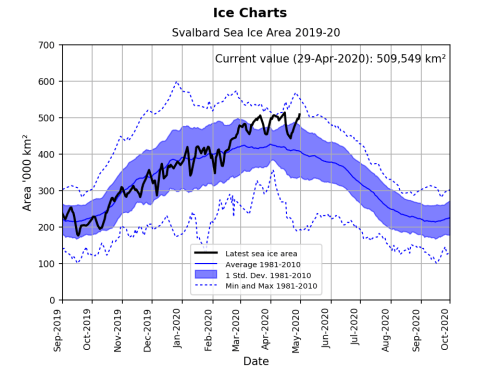

Svalbard ice extent 2020 April 29 graph_NIS

Graphs provided by the Norwegian Ice Service only goes back to 1981 (see the ‘Min/Max’ dotted line in the graph above) but their records go back to at least 1969. Extent at April 29th was sixth highest and on the 30th seventh highest – only slightly less than 1998. NIS archived ice charts availble online only go back to 1998 for April. Below are the charts for April 29th and 30th:

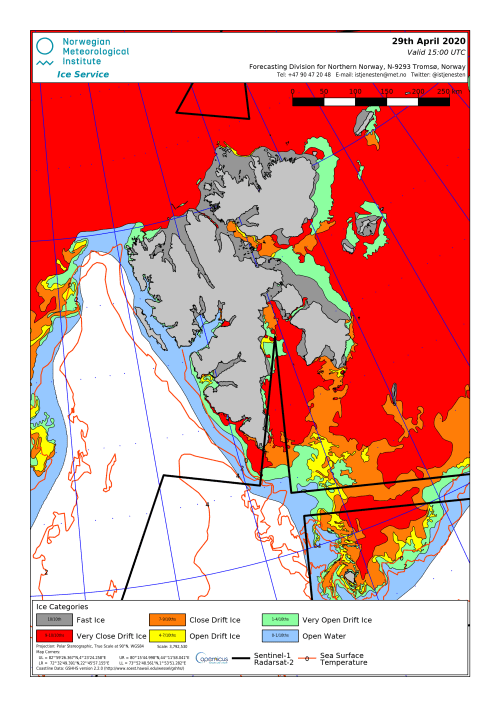

Svalbard ice extent 2020 April 29_NIS

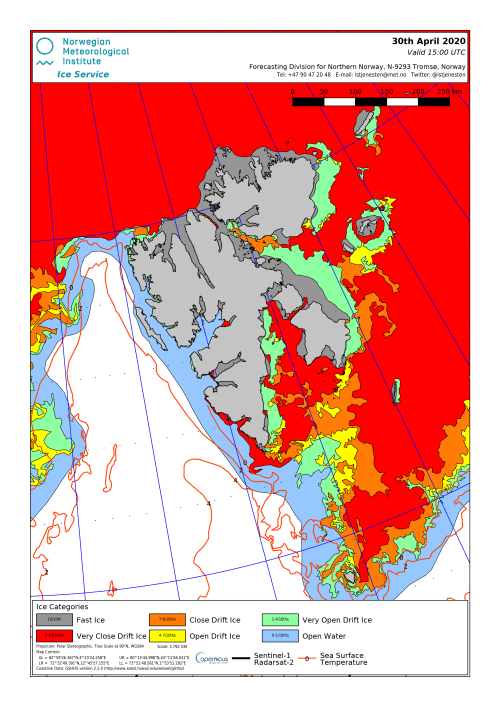

Svalbard ice extent 2020 April 30_NIS

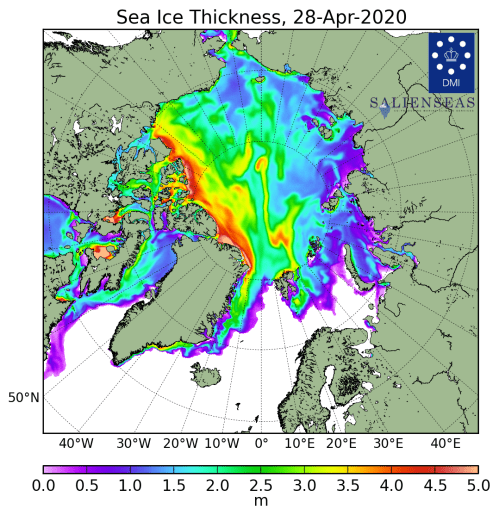

Thick sea ice in the Barents Sea north of Svalbard has been remarkable this year, as the chart below from Danish Arctic research shows:

Sea ice thickness_DMI_2020_04_28_lg

The icebreaker Polarstern, intentionally trapped in the ice pack, may well have trouble making its rendezvous with two German icebreakers off Svalbard in mid-May to exchange staff and replenish supplies. The world’s most powerful nuclear-powered icebreakers can plow through ice up to 2.5m thick but most of the ice just north of Svalbard (see map above) is 3.0-3.5m thick. The map below shows the Polarstern‘s position at 27 April 2020:

Polarstern 2020 location as of April 27 to the North of Svalbard_Graphic_courtesy of AWI

A commenter on Twitter posted a link to a blog post (in Russian) that contains remarkable photos of Russian icebreakers working through consolidated sea ice north of Novaya Zemlya in the Barents Sea in early April. Google Translate offered this nugget: “On the northern shores of Novaya Zemlya there are glaciers that throw off such gifts to sailors in the sea.” These ‘gifts’ are icebergs breaking of the huge icefields of NW Novaya Zemlya (see his/her photo below):

Barents Sea ice consolidated with glacier ice north of Novaya Zemlya_April 2020

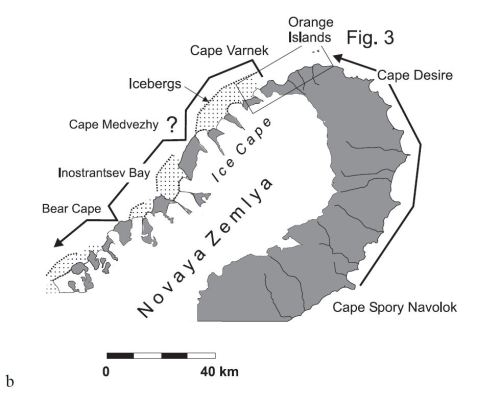

Similar conditions are what stopped explorer William Barents and his crew in their tracks back in 1596 in late August and forced them to spend the winter and following spring in the Arctic. See map below of the ice cap (white) on northwest Novaya Zemlya from this paper: icebergs form ‘ice fields’ off the west coast, generated by the many glaciers; these icebergs get consolidated into the pack ice north and northwest of the island. Cape Spory Navolok is where Barents’ ship was trapped – they made it through the ice fields on the west and north coasts only to get caught in the thick ice off the northeast coast:

Zeeberg et al. 2002 Fig 1b map of north NZ

Barents Sea ice as a region is also high this spring (see Masie graph below at 29 April 2020): not as high as April 2018, but much higher than 2016.

r06_Barents_Sea_ts_4km at 2020 April 29

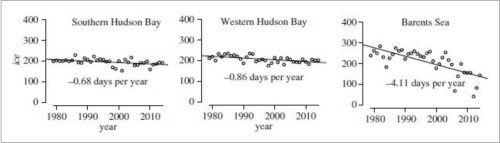

Barents Sea ice supports the Barents Sea polar bear subpopulation and has seen the largest decline in summer sea ice since 1979 of all 19 subpopulations – a much larger decline than even Western and Southern Hudson Bay (Regehr et al. 2016, see below).

Regehr et al 2016 SH WH BS together

In fact, Barents Sea polar bears are often considered one of the most vulnerable of all populations to declining sea ice blamed on global warming (Amstrup et al. 2007; Regehr et al. 2016; Hamilton and Derocher 2019), yet recent data from Svalbard have not supported that conclusion (Aars 2018; Aars et al. 2017; Crockford 2017, 2019, 2020).

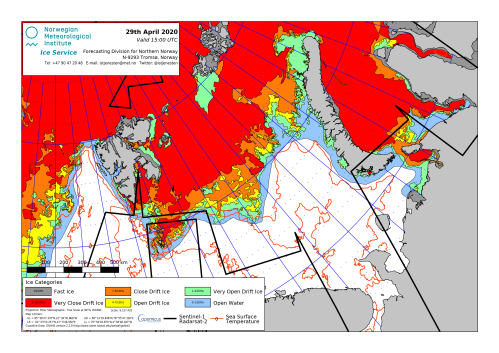

Barents Sea ice 2020 April 29 NIS closeup

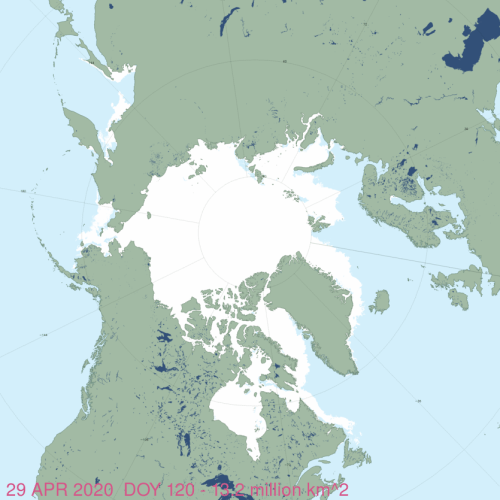

Below is the global ice extent at 29 April 2020 (Day 120):

masie_all_zoom_4km 2020 April 29 Day 120

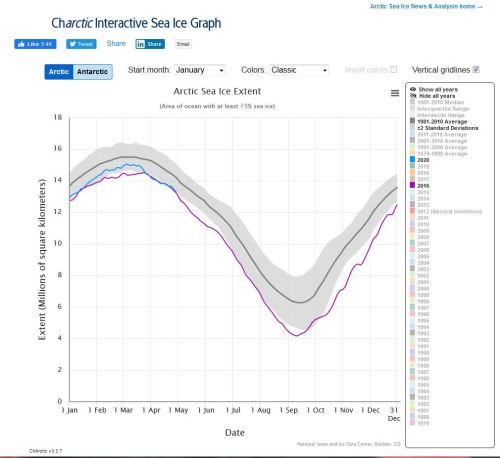

Graph below shows how global ice extent in 2020 and 2016 at 29 April compares to the long term average (NSIDC, back to 1979):

Sea ice extent 2020 and 2016 with 2x deviation closeup at 29 April 2020_NSIDC interactive



References

Aars, J. 2018. Population changes in polar bears: protected, but quickly losing habitat. Fram Forum Newsletter 2018. Fram Centre, Tromso. Download pdf here (32 mb).

Aars, J., Marques,T.A, Lone, K., Anderson, M., Wiig, Ø., Fløystad, I.M.B., Hagen, S.B. and Buckland, S.T. 2017. The number and distribution of polar bears in the western Barents Sea. Polar Research 36:1. 1374125. doi:10.1080/17518369.2017.1374125

Amstrup, S.C., Marcot, B.G. & Douglas, D.C. 2007. Forecasting the rangewide status of polar bears at selected times in the 21st century. US Geological Survey. Reston, VA. Pdf here

Crockford, S.J. 2017. Testing the hypothesis that routine sea ice coverage of 3-5 mkm2 results in a greater than 30% decline in population size of polar bears (Ursus maritimus). PeerJ Preprints 19 January 2017. Doi: 10.7287/peerj.preprints.2737v1 Open access. https://peerj.com/preprints/2737/

Crockford, S.J. 2019. The Polar Bear Catastrophe That Never Happened. Global Warming Policy Foundation, London. Available in paperback and ebook formats.

Crockford, S.J. 2020. State of the Polar Bear Report 2019. Global Warming Policy Foundation Report 39, London. PDF here.

Hamilton, S. and Derocher, A.E. 2019. Assessment of global polar bear abundance and vulnerability. Animal Conservation 22(1):83-95. doi:10.1111/acv.12439

Regehr, E.V., Laidre, K.L, Akçakaya, H.R., Amstrup, S.C., Atwood, T.C., Lunn, N.J., Obbard, M., Stern, H., Thiemann, G.W., & Wiig, Ø. 2016. Conservation status of polar bears (Ursus maritimus) in relation to projected sea-ice declines. Biology Letters 12: 20160556. http://rsbl.royalsocietypublishing.org/content/12/12/20160556
